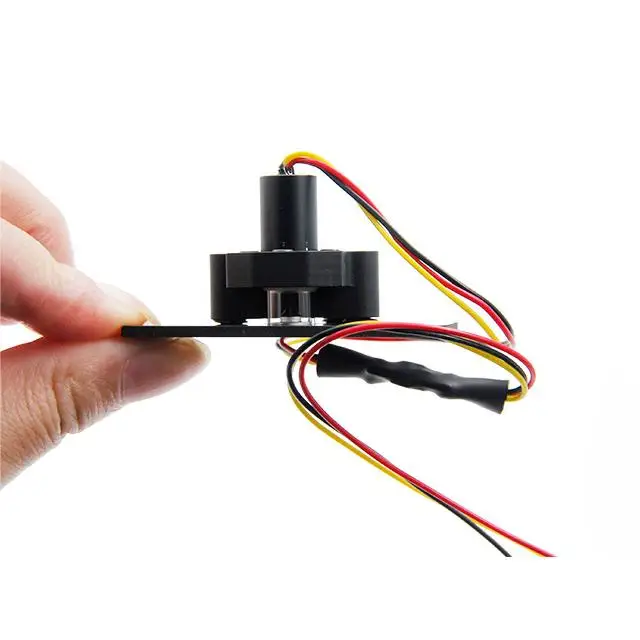

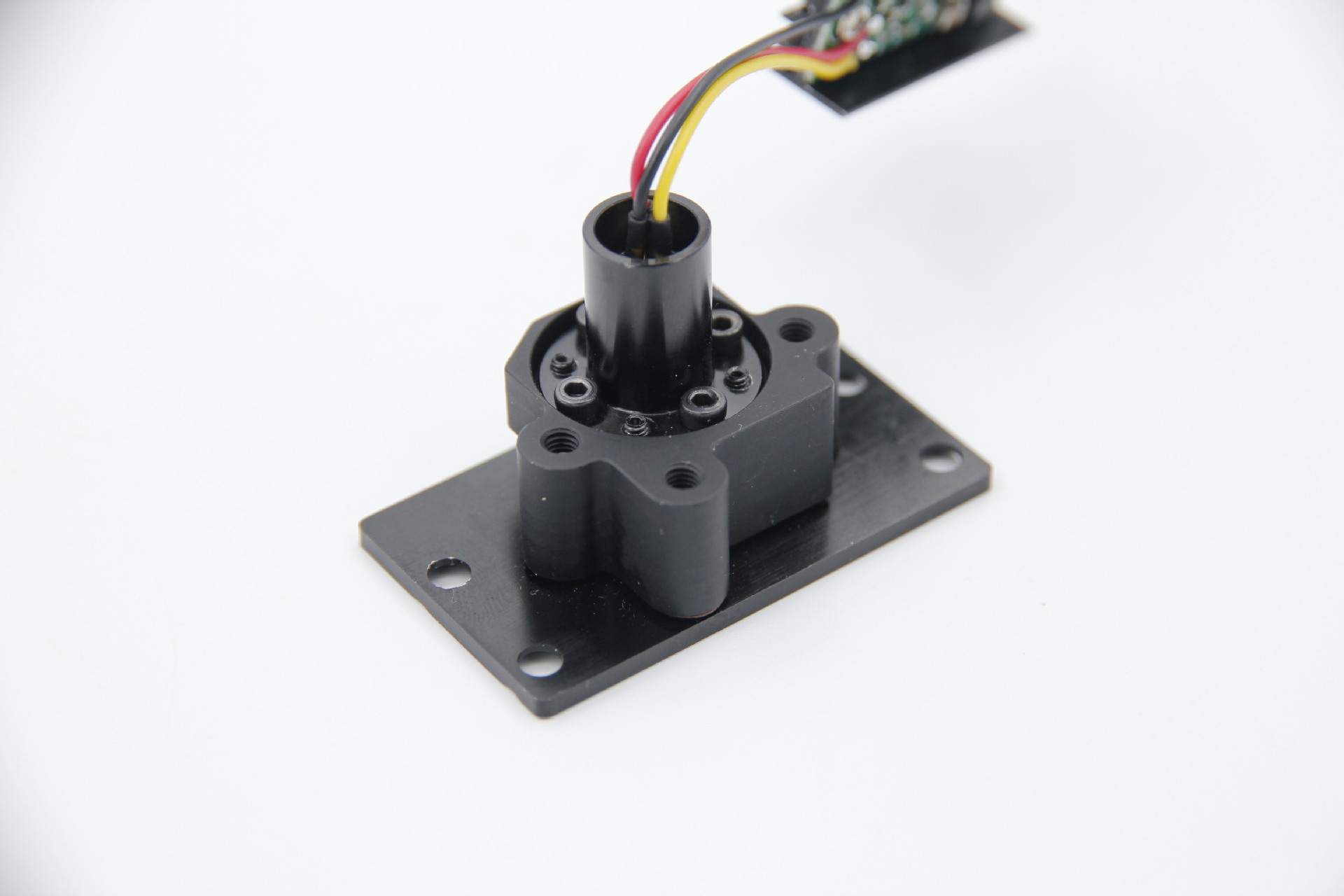

JBP9420Z-002
This product uses a high-energy laser as a light source, projects images onto a screen or other flat surface, and supports interaction through touch control. Compared to traditional projectors, this product projection touch laser has a longer service life, lower power consumption and a narrower beam, allowing for finer projection effects.
Feature
1. Laser projection touch is the use of ultra-short focus projection, 180 degrees divergence Angle.
2. The circuit board supports PWM signal modulation, 24V voltage
3. It can work continuously for a long time. Support desktop touch interactive projection and wall projection.
Our Advantage
1. The product can be customized, according to the customers needs.
2. Factory products pass the test, the quality and working time can be guaranteed.
3. Its advantages include high definition, high brightness, can be used in a variety of environments, and easy to maintain and adjust.
4. Its advantages include high definition, high brightness, can be used in a variety of environments, and easy to maintain and adjust.
Specification
Item | Symbol | Min | Typ | Max | Unit | Test Condition |
Optical Power | Oop | - | - | 200 | mW | Continue |
Threshold Current | Ith | - | - | - | mA | |
Working Current | lop | - | 230 | 280 | mA | |
Working Voltage | Vop | 5 | 12 | 24 | V | |
Reverse Voltage | VR(LD) | - | - | - | V | |
Laser Wavelength | λ | 935 | 940 | 945 | nm | |
Line Width | - | - | 2.5 | mm | 2M | |
Angle of Divergence | - | 180 | ° | |||
Working Mode | C/P | Continuously | ||||
Shell Polarity | + | +/-/0 | Shell Polarity | |||
Working Temperature | TEMP | -10 | - | 65 | ℃ | |
Storage Temperature | TSTG | -40 | - | 80 | ℃ | |
Note: The board supports PWM signal modulation | ||||||
